tubra®-PGM / PGR

PGM DN 40
    PGM DN 40
 PGR DN 40
    PGR DN 40

Heating circuit groups DN 40

The powerful pump groups for mixed and unmixed heating circuits
up to 250 kW heat power.

  • compact modular design
  • powerful performance in minimum space
  • completely pre-assembled for connection to the heating circuit
  • all pumps comply with the ErP directive
  • incl. EPP insulation
tubra® variants DN 40 groups

The compact heating circuit group is available with different pumps.

  • Pumps: Grundfos Magna3, Wilo Para and without pump
  • Mixer: with and without mixer
tubra®-manifold modules for combination DN 25/32 with DN 40

Specially designed manifold modules tubra®-VM allow all combinations for several heating circuits, mixed or unmixed, even in different dimensions – this is the pure performance increase.

  • suitable for all groups of the series tubra®-PGM / PGR
  • manifold module DN 40 for up to 4 heating circuits
  • connection for DN 40 or DN 25 and DN 32 groups
  • adapter set for manifold enables optimum screw connection between pump group and manifold module.

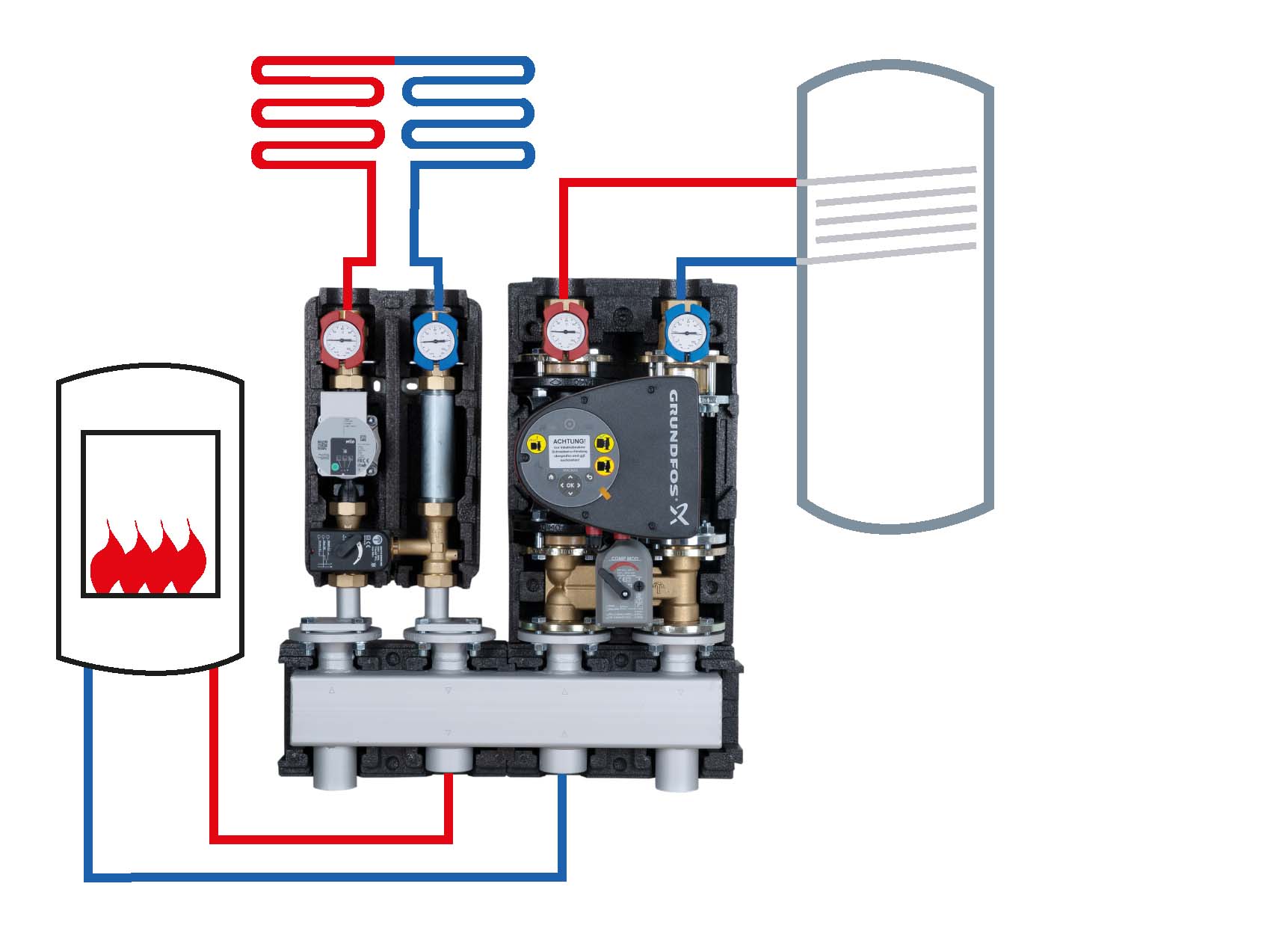

tubra® PGM DN 25 with manifold DN 40 and adapter DN 25 / 40

tubra® accessory selection

tubra®-VM2 -4 manifold module DN40 for up to 4 heating circuits with adapter also for heating circuit groups DN25/32
tubra® adapter set for DN40 distributor connection option for heating circuit groups DN25/32 to DN40 manifold
tubra®-BK floor bracket for DN40 manifold
Product portfolio Heating circuit

Compact heating circuit groups from DN20 to DN40 with thermal insulation

Heating circuit groups DN 20

tubra®-PGM/PGR S
The compact pump groups for mixed and unmixed heating circuits up to 45 kW heat output

see product

Heating circuit groups DN 25/32

tubra®-PGM/PGR DN 25/32
The universal pump groups for mixed and unmixed heating circuits up to 90 kW heat output

see product

Product image PGM 40 648
PGM DN 40 with mixer
Product image PGM 40 without mixer 648
PGR DN 40 without mixer
